Receivers

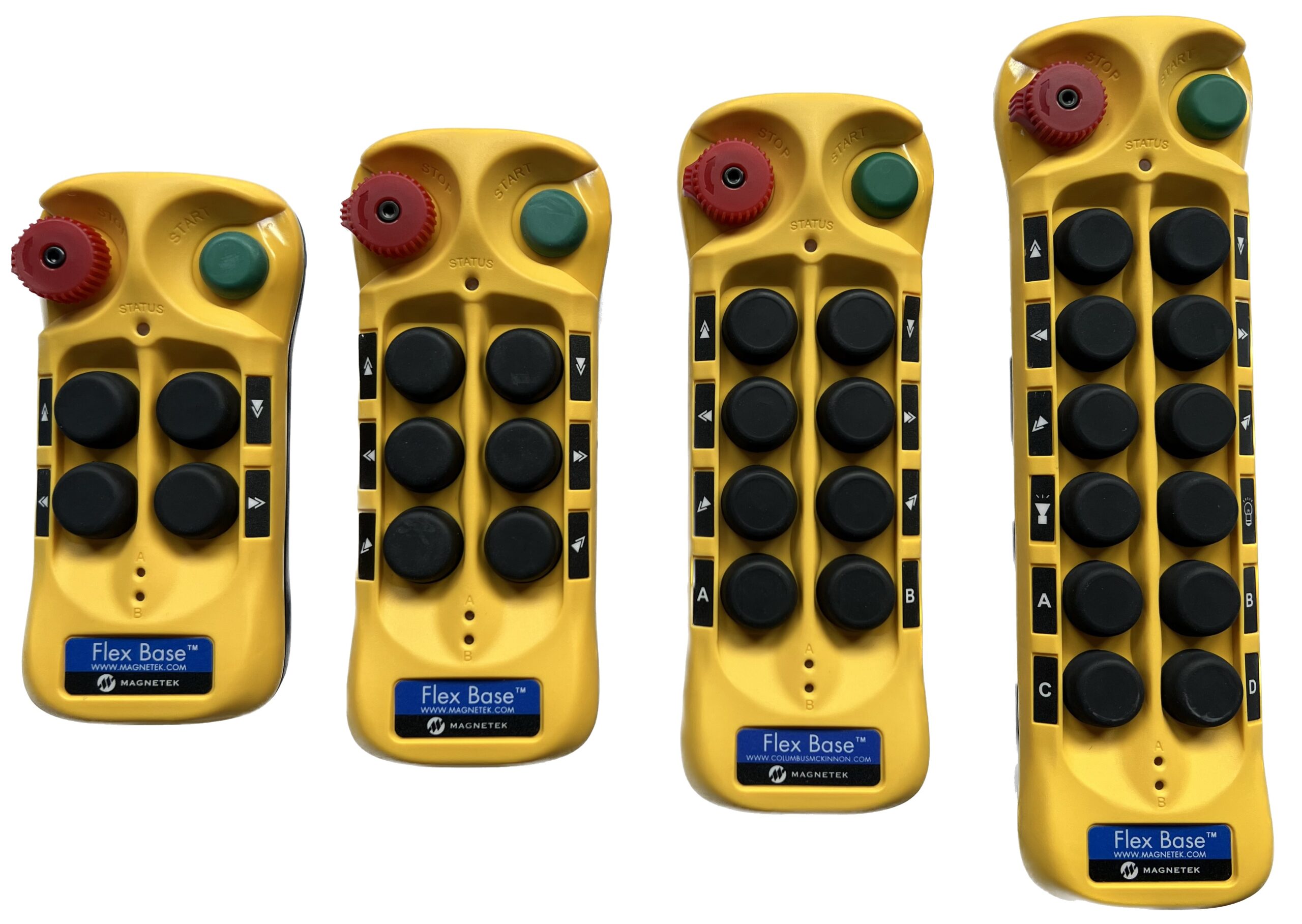

The Flex Base wireless control system provides a cost-effective solution to the restrictive use of hardwired pendants. These durable and rugged yet lightweight controls are ideal for use in lifting applications including chain hoists and small cranes. The ergonomic Flex Base transmitter is available in 4, 6, 8, and 12 button options, and packaged with our MRX or Flex Base receivers for a complete solution.
Flex Base systems are packaged with two transmitters and a receiver, allowing for easy replacement and increased uptime. Our 4- and 6-button transmitters are paired with the space-saving MRX receiver, while 8- and 12-button transmitters are paired with the Flex Base receiver.
Features
- Designed to simplify installation and provide flexibility for easy adjustments or configurations
- Onboard diagnostic and output LEDs provide useful system status information for installation and troubleshooting
- Includes 1.8m of cable and mounting hardware
- Rugged IP66 rated fully sealed receiver enclosurs provide you with confidence and protection in harsh indoor and outdoor environments
- Includes an internal antenna with full range capability, and optional fitting for external antenna
MRX Receiver

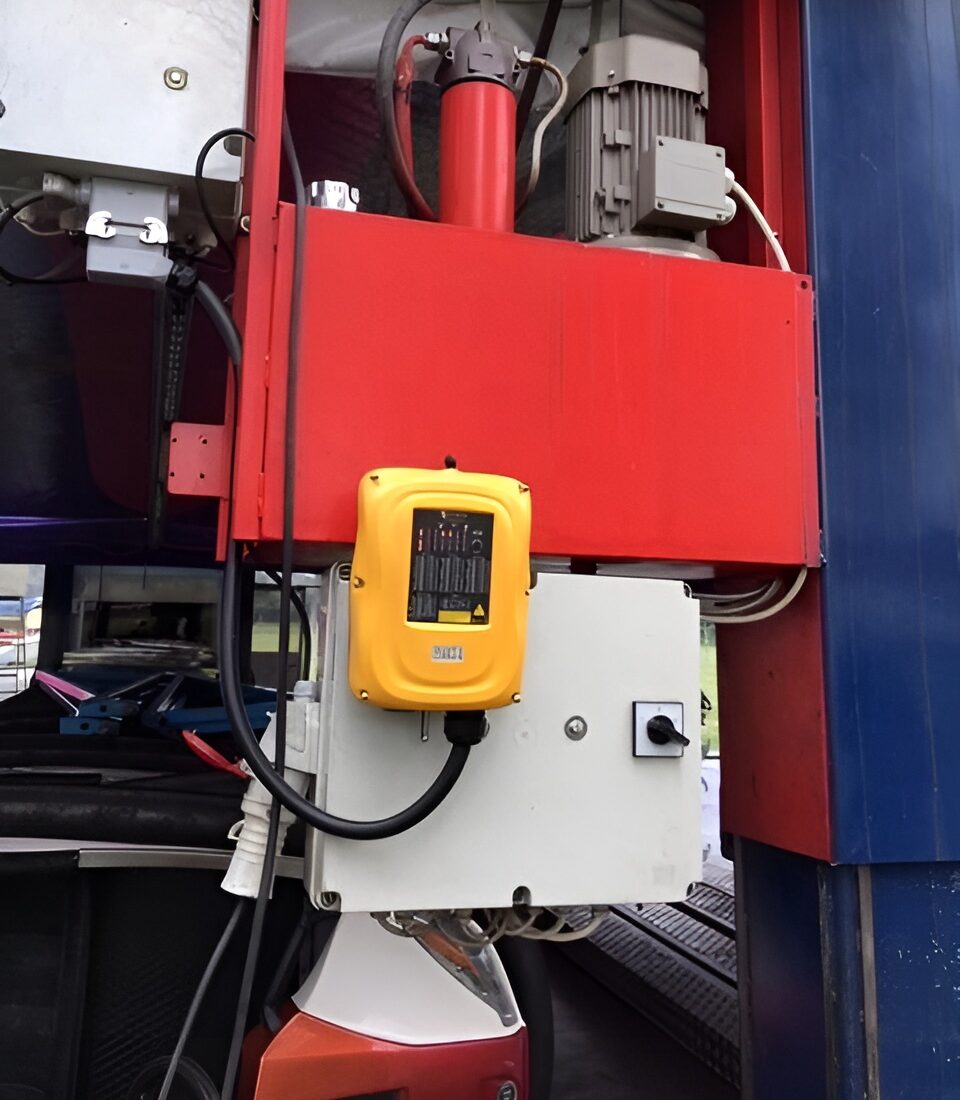

This lightweight, versatile receiver can be securely mounted on the control panel or directly onto the body of a hoist without disrupting or causing any imbalance in the system. Designed for a variety of applications, it ensures smooth functionality without affecting overall performance. Its advanced Voltage Select feature automatically detects and adjusts to the control voltage from three available power supply options, ensuring flexibility and ease of use. The options include: 9-36 VDC, 24-48 VAC, and 48-240 VAC, offering adaptability across various setups.
The MRX Receiver is ideal for use in dynamic environments where precision and reliability are key. Its robust design and compact size make it a convenient solution, and its ability to accommodate different voltage types ensures its versatility across multiple power configurations. This product is built to provide efficient operation in demanding settings, whether it is being used in industrial applications, heavy-duty hoists, or any other equipment requiring precise voltage selection.
- Dimensions: 120 mm (L) x 90 mm (W) x 55 mm (H)
- Weight: 900 kg / 2.0 lb (including output cable) FLEX BASE
Flex Base Receiver
The feature-rich Flex Base receiver is designed to provide enhanced control capabilities and versatile options, making it ideal for use in overhead cranes. It supports a range of functions, including light controls, magnet management, and powered lifting devices, allowing for seamless operation and increased productivity.
Its wireless pairing capability enables quick and efficient information transfer between two transmitters or a transmitter/receiver system. This feature allows new systems to be up and running faster, reducing the need for spare parts and minimizing downtime. Additionally, the Flex Base receiver is equipped with numerous programmable functions, allowing for customization to suit nearly any application. A wide selection of accessories is also available, offering enhanced protection and added flexibility for various setups.
- Dimensions: 260mm (L) x 204mm (W) x 83mm (H)
- Weight: 2.5 kg / 5.5 lb (including output cable)
Flexible and Efficient Performance
Wireless pairing capability facilitates quick setup, minimizing spare parts inventory and enabling fast system activation. Programmable functions ensure the receiver is adaptable to various industrial applications. A wide range of accessories is available to enhance protection and expand functionality.
Strong and Reliable
Pushbuttons feature gold-plated contacts, ensuring over one million press cycles and providing tactile feedback, even when wearing gloves. Durable enclosures made from industrial-strength nylon and fiberglass composite materials guarantee long-lasting reliability. The receiver operates for over 100 hours on two "AA" alkaline batteries, with an optional rechargeable battery kit. The battery compartment is easily accessed with a thumbscrew, requiring no tools. It also offers a line-of-sight distance of up to 100 meters (300 feet).
Secure and Dependable Communications
Advanced 32-bit microprocessor controls with CRC and Hamming Code deliver ultra-fast, precise, and error-free encoding and decoding. Each system includes over one million unique identification codes (20-bit), ensuring secure, non-repetitive communications.
